PUMPING
up to 60 m³/h
High productivity for large-scale projects
Official KRD Website
- Customer Service
- Branches & Representatives
- Locations
PUMPING
up to 60 m³/h
High productivity for large-scale projects
POWER
180 HP
HBE Huandong diesel engine
REACH
up to 120 m
Vertical pumping with a horizontal reach of up to 380 m
Pumping capacity of up to 60 m³/h, ideal for large projects requiring high concrete volumes and consistent performance.
Vertical pumping reach of 60 m to 120 m and a theoretical horizontal reach of 200 m to 380 m meet the needs of demanding projects.
The Rexroth 190 pump provides strength, efficiency and durability for intensive operation.
Wireless remote control and a fixed control panel make the pump more convenient to operate on site.
The RD-60 is designed for large-scale projects and demanding applications requiring highly productive concrete pumping.
Its technical pumping capacity is up to 60 m³/h, delivering high performance in continuous operation.
The RD-60 has a vertical pumping reach of 60 m to 120 m and a theoretical horizontal reach of 200 m to 380 m.
Yes. It includes wireless remote control and a fixed control panel for more convenient operation.
The technical specifications recommend pipes at least 4 inches in diameter.
Engine model
HBE Huandong diesel
Power
180 HP @ 2,000 rpm
Pumping capacity
up to 60 m³/h
Working hydraulic pressure
28 MPa
Vertical reach
60 m to 120 m
Horizontal reach
200 m to 380 m
Controls
Wireless remote control + fixed control panel
Hydraulic system
Open circuit + Rexroth 190 pump
Hopper volume
600 L × 1,400 mm
Hydraulic tank
620 L
Equipment weight
6,000 kg
Dimensions (L×W×H)
6.20 m × 1.90 m × 2.10 m
Maximum aggregate size
≤ 36 mm
Pump outlet
Φ180 mm / 7"
Delivery pipe
Φ200 mm
Technical note
Use pipes at least 4 inches in diameter
Pumping
up to 60 m³/h
High productivity for concrete pumping on large construction projects.
Reach
60-120 m vertical
Theoretical horizontal concrete delivery distance of 200 m to 380 m.
Hydraulic pump
Rexroth 190
A robust, efficient and durable system for demanding projects.
Operation
Wireless control
Includes long-range wireless remote control and a fixed control panel.

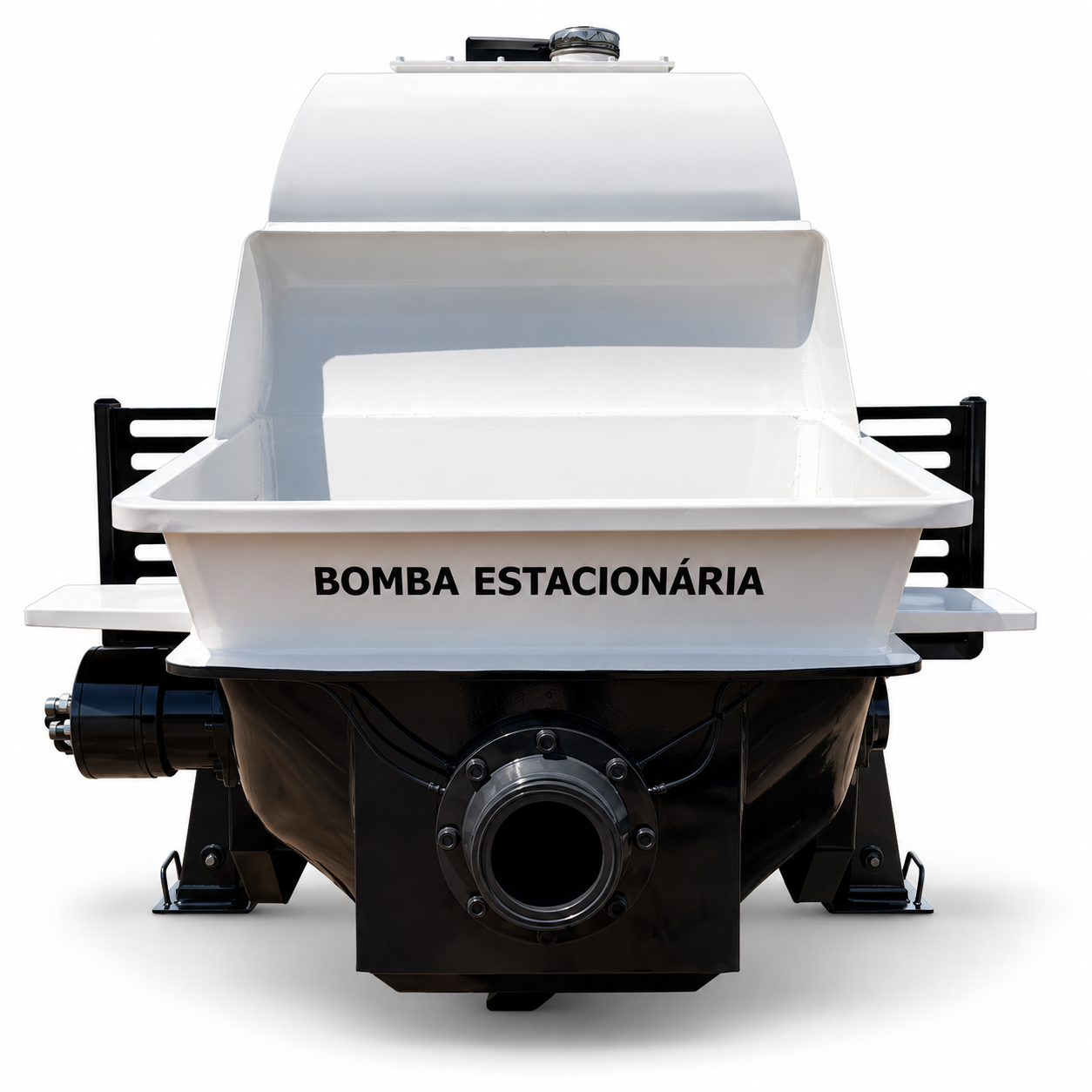

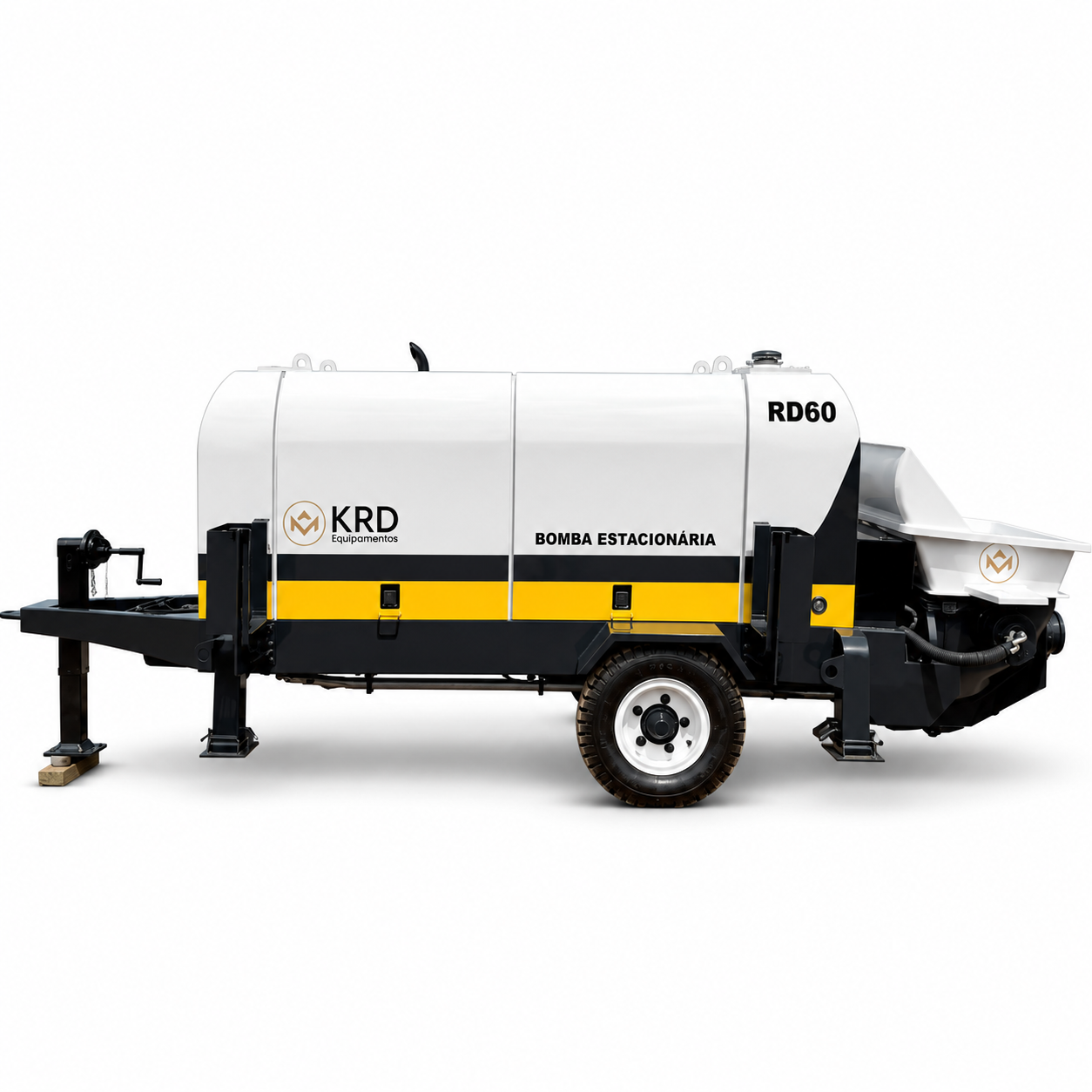

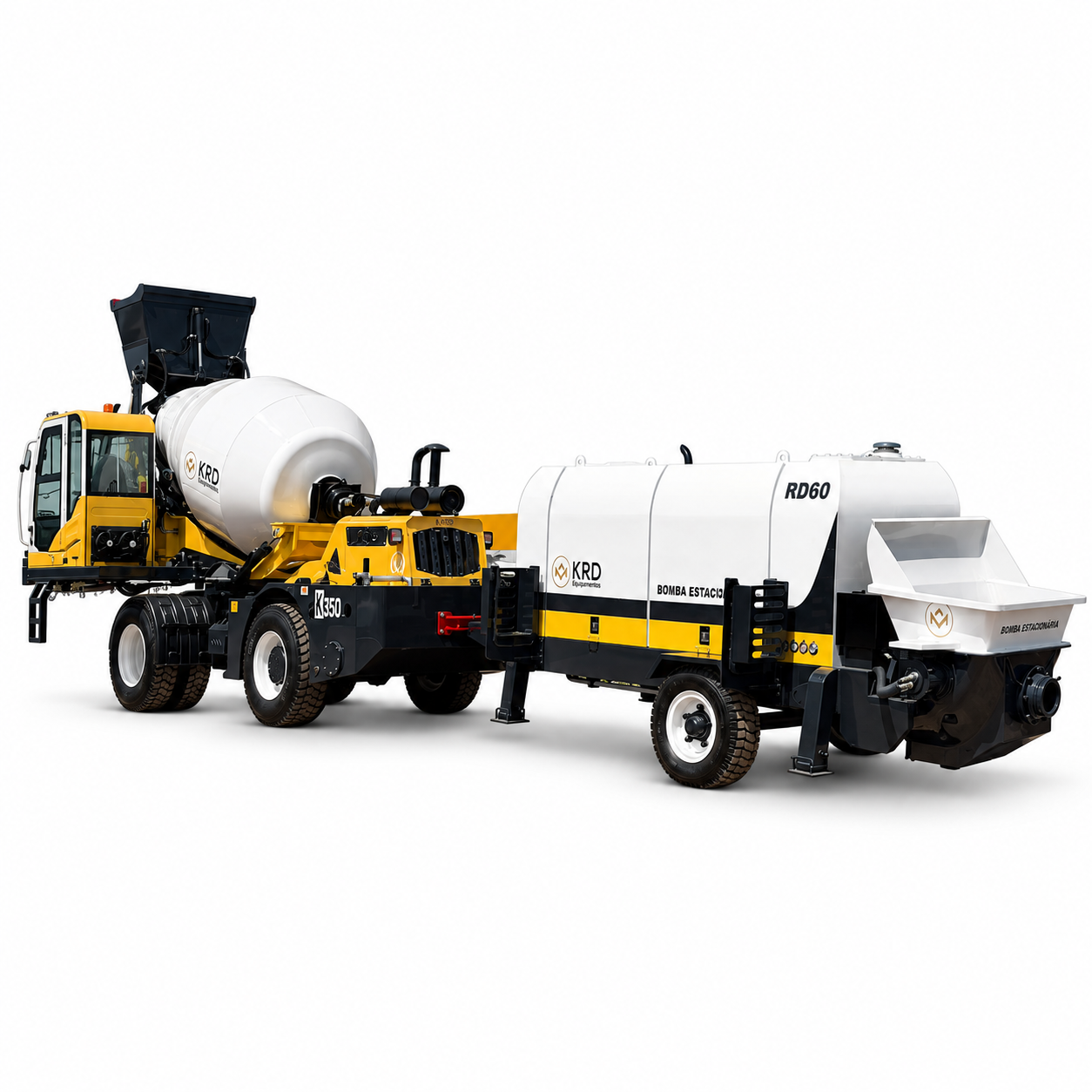

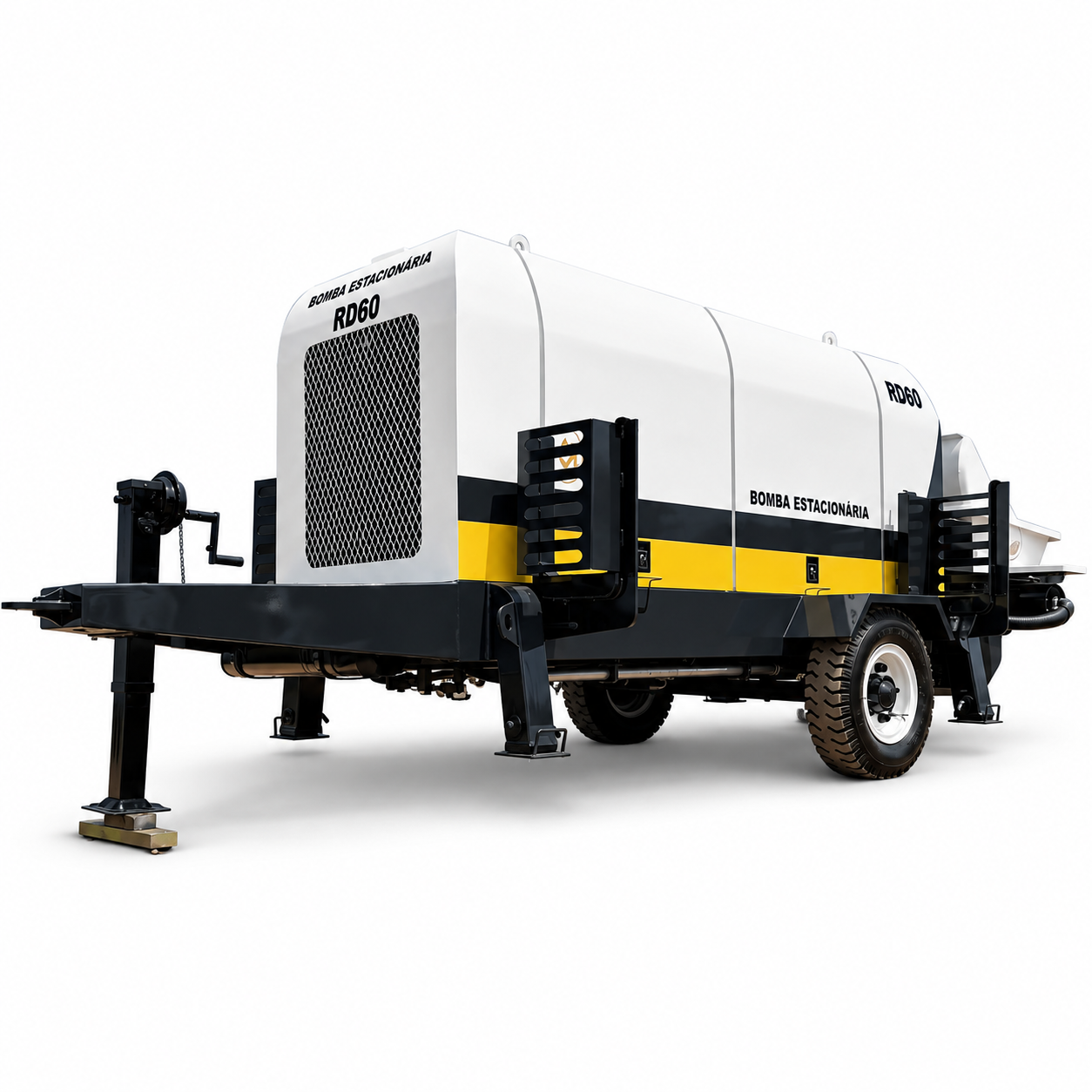

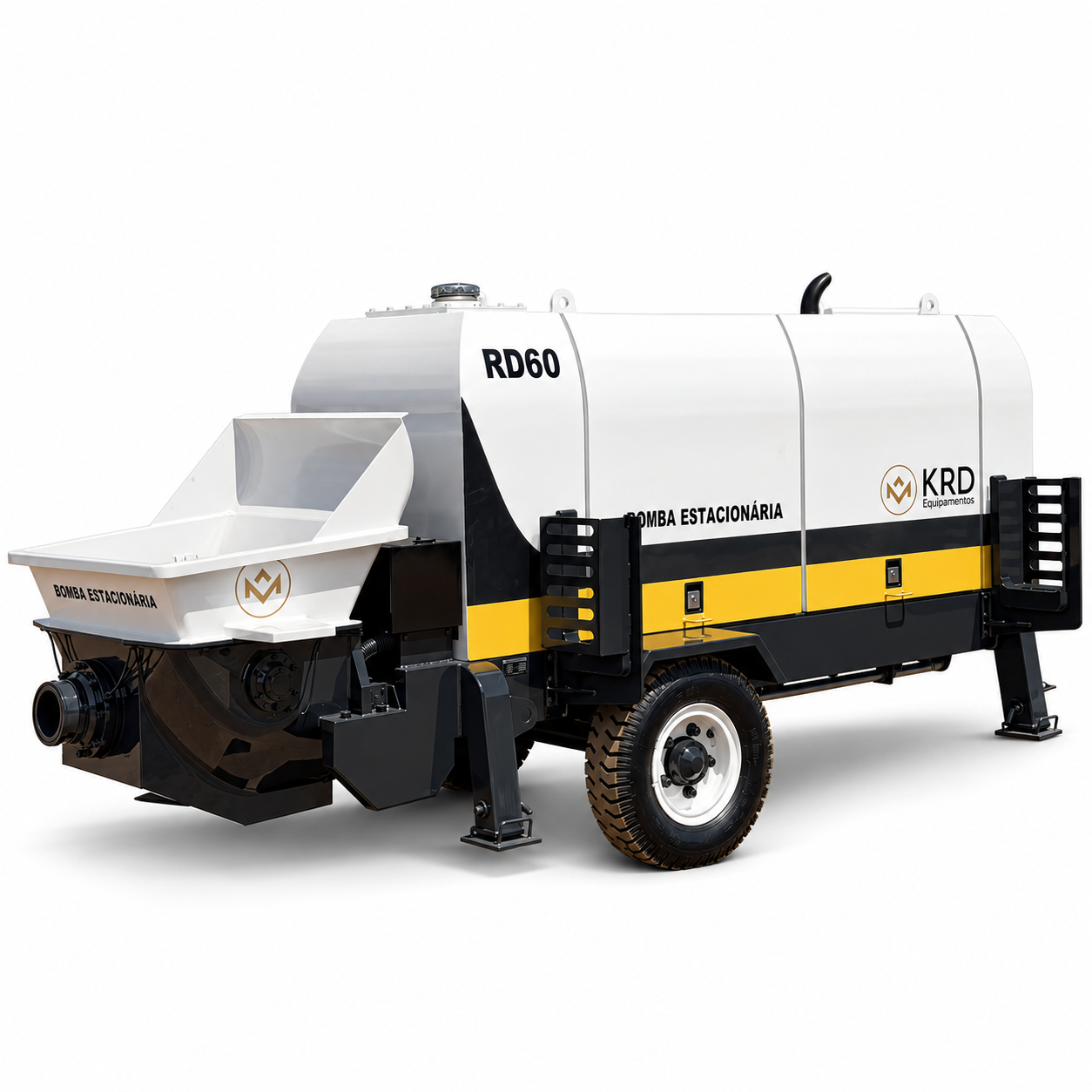

RD-60 is a large stationary concrete pump designed for productivity, power and precision on demanding projects, with pumping capacity of up to 60 m³/h and vertical reach of up to 120 meters.
*Values may vary depending on operating conditions, concrete mix, delivery distance, maintenance, pipe diameter and equipment application.
