PUMPING
up to 12 m³/h
Ideal capacity for smaller jobs
POWER
60 HP
HBE Huandong 4102 diesel engine
REACH
8 m to 15 m
Vertical pumping with a horizontal reach of 30 m to 70 m
Pumping capacity of up to 12 m³/h for smaller jobs and projects requiring a continuous concrete flow.
Operate the pump from a distance for easier on-site work and greater control during concrete placement.
Vertical pumping reach of 8 m to 15 m and a theoretical horizontal reach of 30 m to 70 m provide versatility across different projects.
An open hydraulic circuit and automatic lubrication system help keep the equipment operating efficiently.
The RD-10 is designed for smaller jobs and projects that require practical, efficient and well-controlled concrete pumping.
Its technical pumping capacity is up to 12 m³/h, making it suitable for jobs with continuous concrete demand.
Yes. The RD-10 has a vertical pumping reach of 8 m to 15 m and a theoretical horizontal delivery distance of 30 m to 70 m.
Yes. It includes wireless remote control and a fixed control panel for easier operation on site.
The RD-10 comes with 12 meters of pipe in 3-meter sections and one 6-meter hose.
Engine model
HBE Huandong 4102 diesel, 4 cylinders
Power
60 HP @ 2,000 rpm
Pumping capacity
up to 12 m³/h
Working hydraulic pressure
17-18 MPa
Vertical reach
8 m to 15 m
Horizontal reach
30 m to 70 m
Controls
Wireless remote control + fixed control panel
Hydraulic system
Open circuit + KRD 112/140 pump
Hopper volume
300 L × 1,150 mm
Hydraulic tank
100 L
Equipment weight
1,950 kg
Dimensions (L×W×H)
3.50 m × 1.40 m × 1.60 m
Maximum aggregate size
≤ 30 mm
Pump outlet
Φ125 mm / 5"
Delivery pipe
Φ140 mm
Included accessories
12 m of pipe + 6 m hose
Pumping
up to 12 m³/h
Ideal capacity for smaller jobs and projects with continuous concrete demand.
Reach
8-15 m vertical
Theoretical horizontal concrete delivery distance of 30 m to 70 m.
Hydraulic system
17-18 MPa
Open circuit, automatic lubrication and 10 MPa outlet pressure.
Operation
Wireless control
Includes long-range wireless remote control and a fixed control panel.

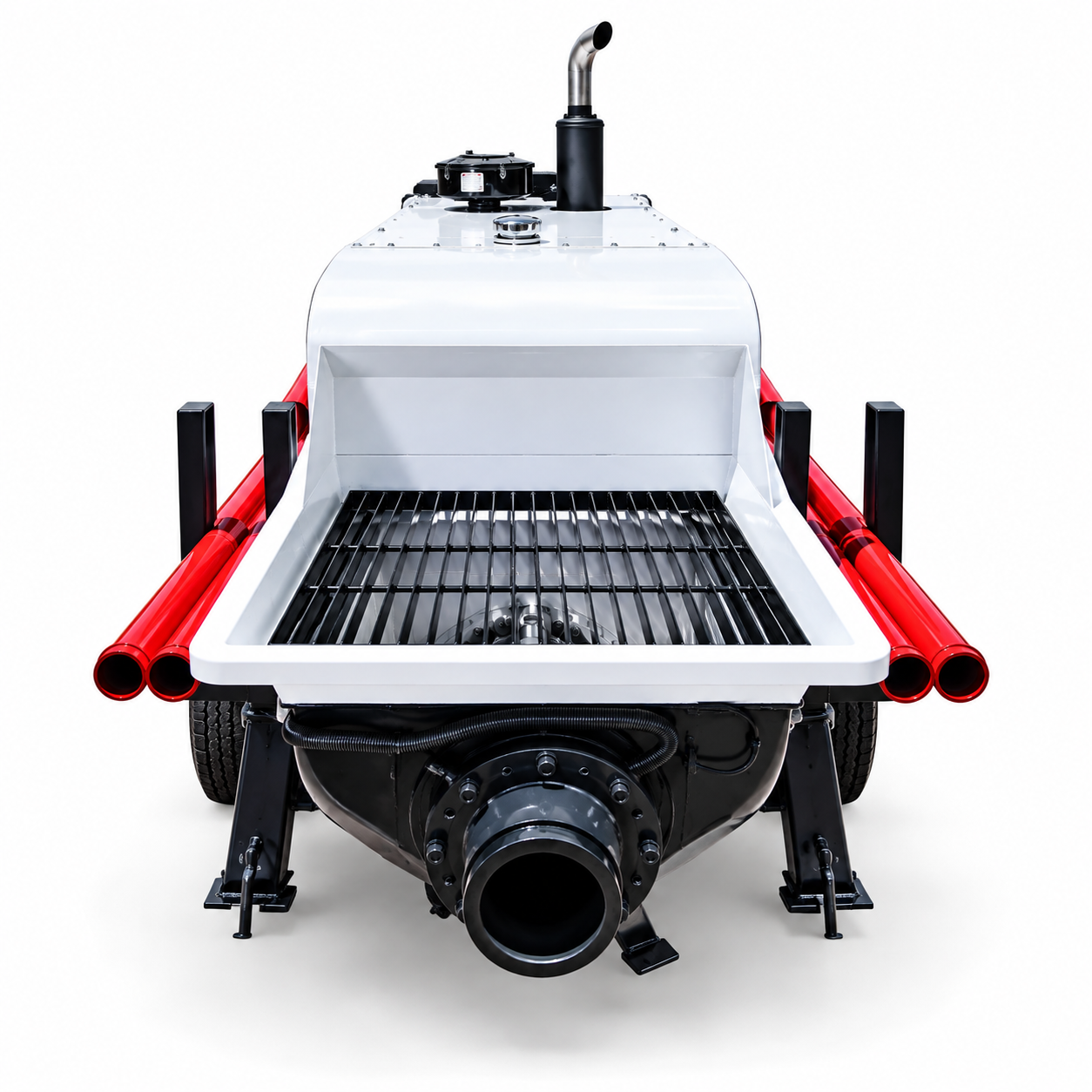

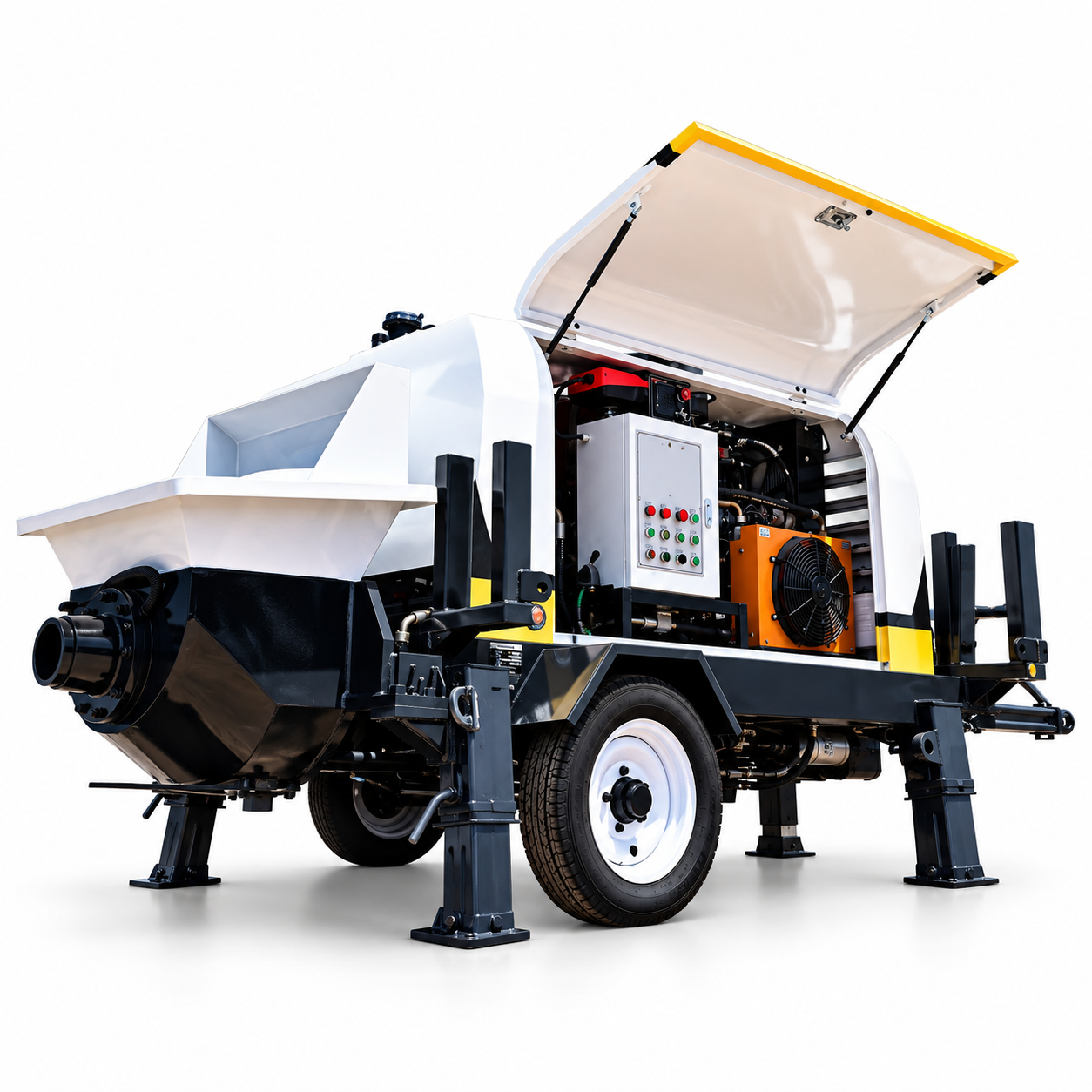

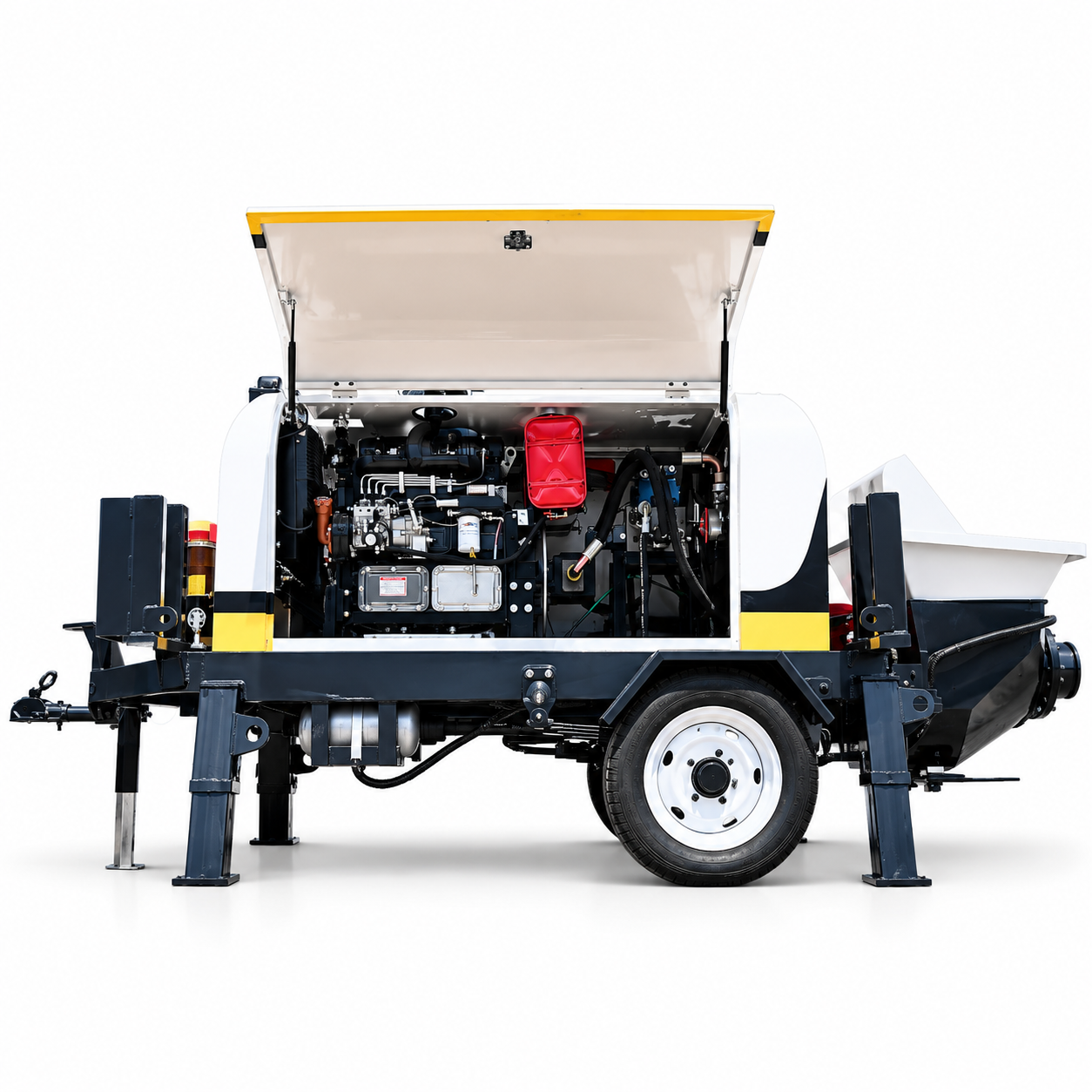

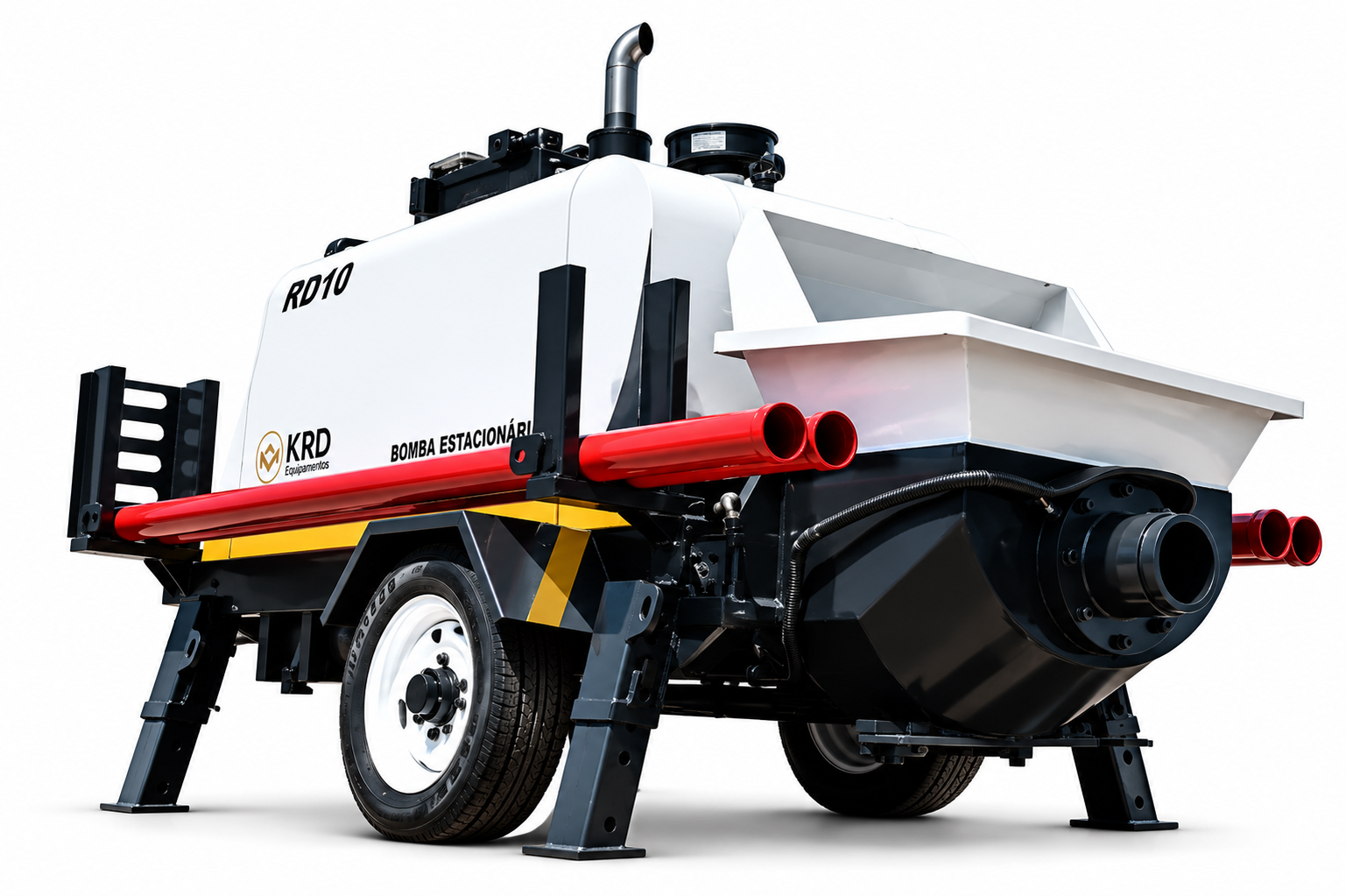

RD-10 is a compact, efficient stationary concrete pump, ideal for smaller jobs, with a 4-cylinder diesel engine, wireless remote control and pumping capability for projects up to 15 meters high.
*Values may vary depending on operating conditions, concrete mix, delivery distance, maintenance and equipment application.
