POWER
125 HP
Weichai Deutz WP6 turbo diesel engine, 6 cylinders
OUTPUT
up to 150 m³/day
Output of 3 cycles per hour
TRACTION
4x4
Articulated chassis with reduction gearing on all four wheels
Indicative daily output of 100 to 150 m³ of concrete, with an 8.2 m³ drum and a loading capacity of 5 m³ per batch.
All-wheel drive with reduction gearing on all four wheels and an articulated chassis provides mobility, power and stability on challenging terrain.
Electronic weighing with a hydraulic sensor, display and mix report printer reduces waste and improves production control.
Comfort-equipped cab with air conditioning, a camera display, a locking hand throttle and combined cab and drum rotation of up to 270°.
The K-500 is designed for large projects requiring high daily concrete volumes, continuous productivity and independent operation.
Yes. Its 4×4 traction, articulated chassis and reduction gearing on all four wheels enable operation on uneven ground and sites with challenging access.
Its main advantage is the combination of high production capacity, electronic weighing, a rotating cab and the ability to produce concrete directly on site.
Yes. Electronic weighing and mix control help ensure accurate material dosing, reducing losses and improving concrete quality.
Engine model
Weichai Deutz WP6 6105, turbo diesel, 6 cylinders
Power
125 HP @ 2,200 rpm
Maximum torque
500 Nm @ 1,400–1,600 rpm
Emissions standard
Euro II
Traction
4×4 all-wheel drive, articulated chassis
Maximum travel speed
35 km/h
Rotation range
270°
Controls
Joystick + gear pump
Drum geometric volume
8.2 m³
Loading capacity
5 m³ per batch
Bucket capacity
0.8 m³
Fuel tank
200 L
Water tank
1,000 L
Gross weight
23,125 kg
Net weight
10,875 kg
Dimensions (L×W×H)
9.30 m × 3.45 m × 4.00 m
Output
3 cycles/hour
Indicative daily concrete output of 100 to 150 m³.
Water system
90 L/min pump
Self-priming electric pump with a 1,000 L water tank.
Braking system
Dry disc brakes
Air-over-oil brakes on all four wheels + manual parking brake.
Operation
Premium ROPS/FOPS Cab
Comfort-equipped cab with air conditioning, a camera display and a locking hand throttle.

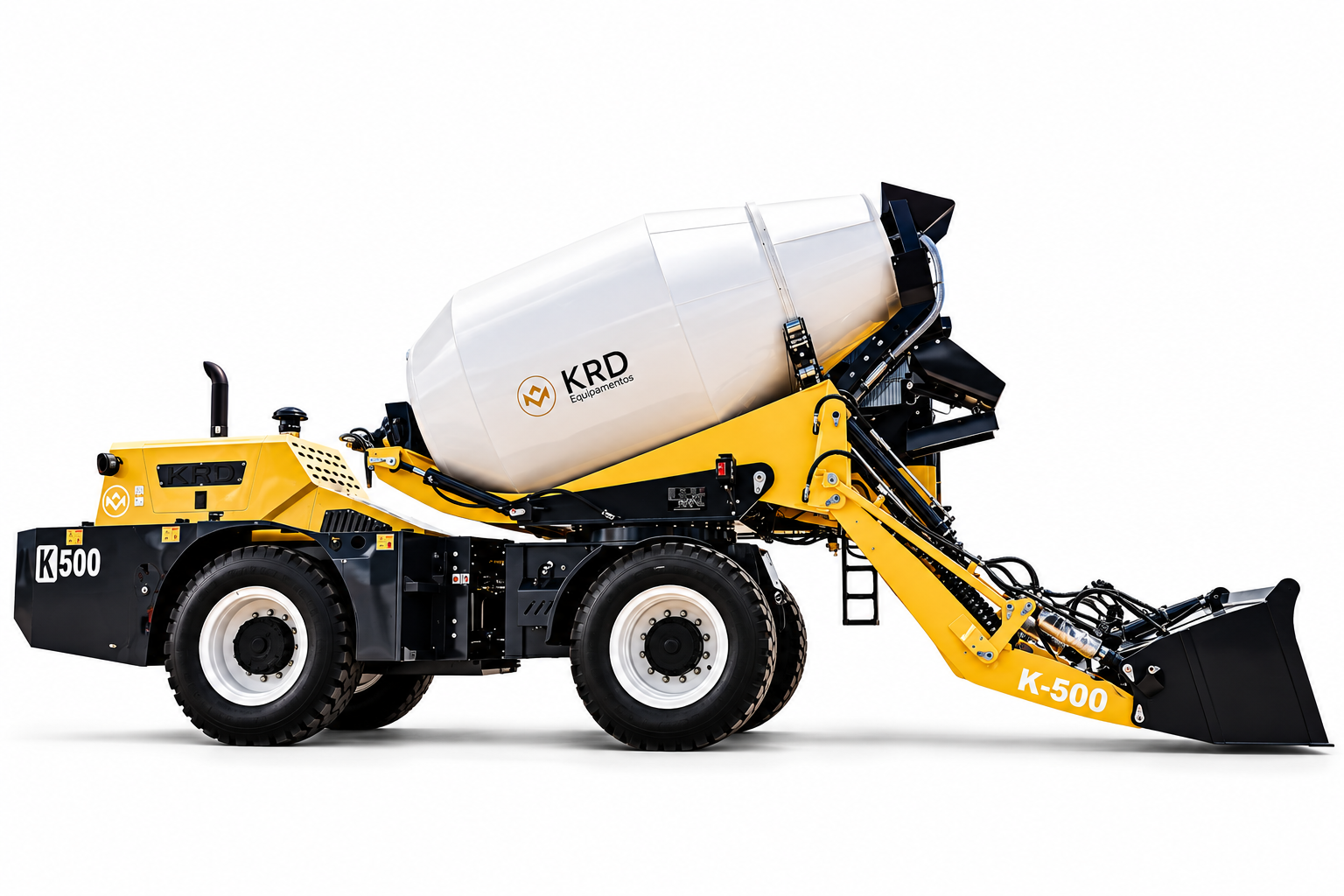

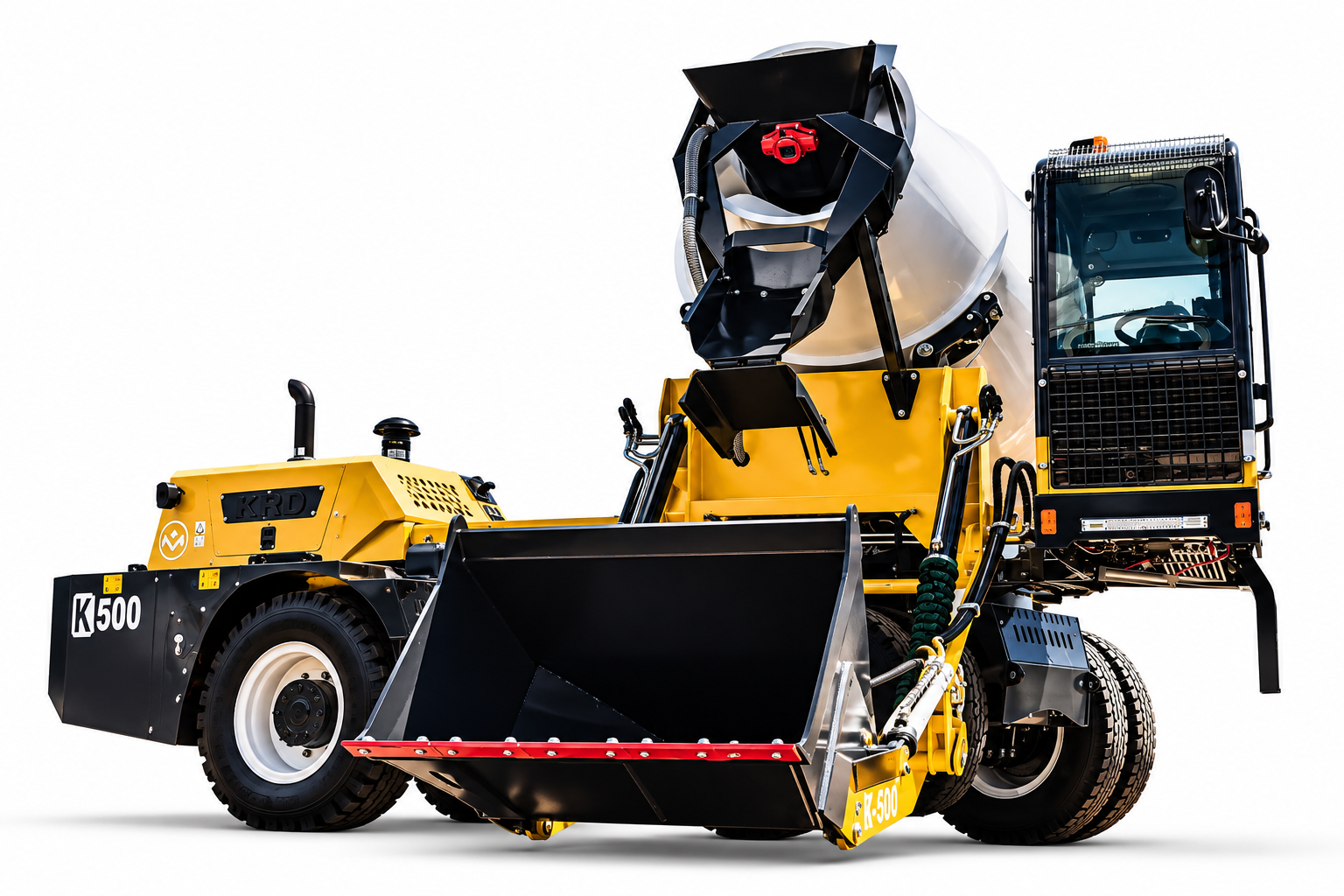

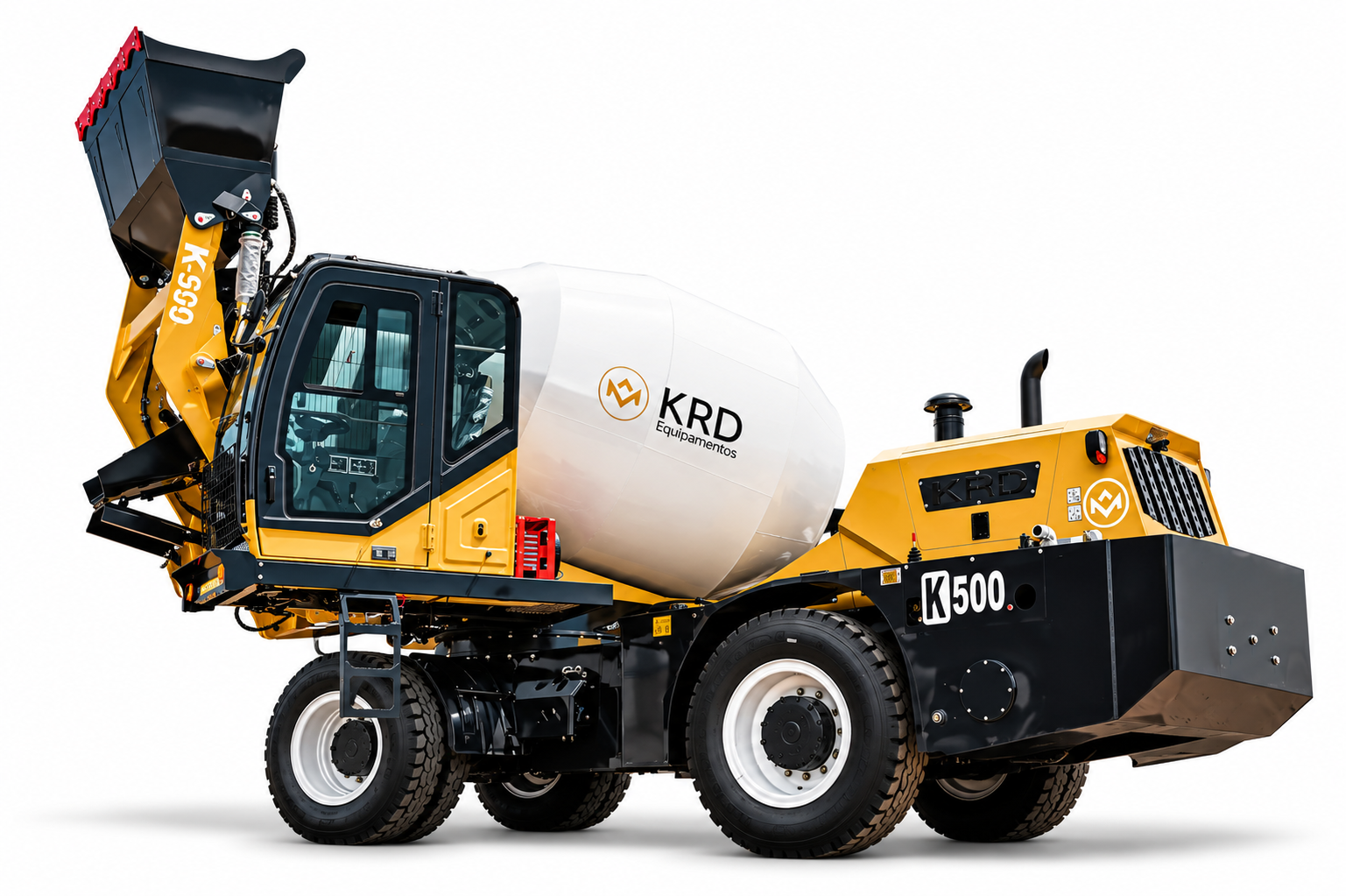

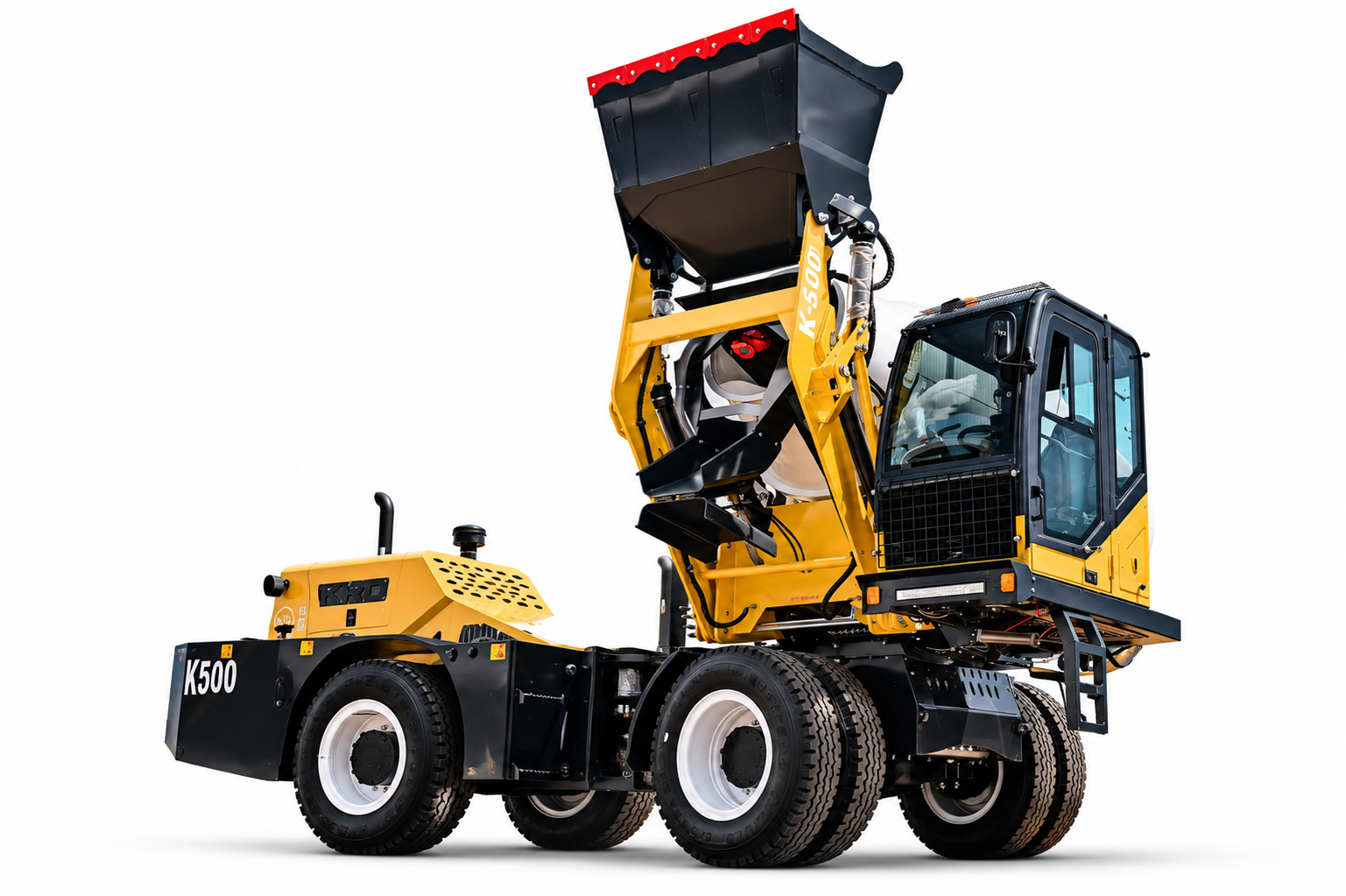

K-500 is a large self-loading concrete mixer combining efficiency and productivity, capable of producing up to 150 m³ of concrete per day and making batching, loading and discharging concrete faster on large projects.
*Values may vary depending on operating conditions, maintenance, loading and unloading distances, operating hours and equipment application.
